Inverter Solis Mini 1500 4G

Name: SAMOTO – Battery VRLA 12V 100AH
SKU: 5110
Availability: InStock

SKU: inverter-solis-mini-3000-4g-1 Kategori: Grid Tied, Inverter Tag: energi surya, Hemat Energi, inverter, On Grid, Pembangkit Listrik Tenaga Surya, toko panel surya surabaya.

● Seri MiNi- Diperluas hingga 3600W
● Teknologi switching frekuensi tinggi-Smallersmarter
● DRM terintegrasi sepenuhnya sesuai dengan AS47772: 2015
● Ringkas dan ringan
● Rentang tegangan input 50V-500V- startup sangat rendah
● Efisiensi Maksimal 97,5%
● Algoritma MPPT yang tepat
● Manajer Daya Ekspor (EPM) Terintegrasi
● Antarmuka RS485 WiFi / GPRS (opsional)
● Pemantauan WiFi tersedia — tersedia aplikasi iphone dan android
● 5 tahun garansi standar 20 tahun upgrade opsional

*)Barang Akan dikirimkan 21-40 hari kerja

Rp10,546,938

Compare

Model	Solis-mini-1500-4G
Energy Source	PV

Input Side(DC)
Max. DC input power(kW)	1.8
Max. DC input voltage(V)	600
Start-up voltage(V)	60
MPPT voltage range(V)	50-500
MPPT number	1
Max input string number / Max. Short Circuit current for each MPPT	11 A / 17.2 A

Output Side (AC)
Rated output power(kW)	1.5
Max. apparent output power(kVA)	1.7
Max. output power(kW)	1.7
Rated grid voltage(V)	220/230
Rated grid frequency(Hz)	50/60
Operation phase	Single
Rated grid output current(A)	6.8/6.5
Max. output current(A)	8.1
Power Factor (at rated output power)	0.8leading … 0.8lagging
THDi (at rated output power)	<3%
DC injection current(mA)	<0.5%In
Grid frequency range(Hz)	47-52 or 57-62

Efficiency
Max.efficiency	97.2%
EU efficiency	96.5%
MPPTefficiency	>99.5%

Protection
DC reverse-polarity protection	Yes
Short circuit protection	Yes
Output over current protection	Yes
Output over voltage protection	Yes
Insulation resistance monitoring	Yes
Residual current detection	Yes
Surge protection	Yes
Islanding protection	Yes
temperature protection	Yes
Integrated DC switch	Optional

General Data
Dimensins(mm)	310W373H160D
Weight(kg)	7.4
Topology	Transformerless
Self consumption (night)	<1W(Night)
Operating ambient temperature range	-25~60℃
Ingress protection	IP65
Noise emission{typical}	<20dBA
Cooling concept	Natural convection
Max.operation altitude	4000m
Designed lifetime	>20years
Grid connection standard	EN50438, AS4777.2:2015, VDE0126-1-1, IEC61727, VDE N4105, G98, G99
Relative humidity	0~100%
Safety/EMC standard	IEC62109-1/-2, NB/T 32004, EN61000-6-1, EN61000-6-3

Features
DC connection	MC-4 mateable
AC connection	IP67nrated plug
Display	LCD,2×20 Z.
Communication connections	4 pins RS485 connector
Warranty	5 years standard (extend to 20 years)

Berat:
9 kg
Dimensi:
31 × 16 × 38 cm

5 Stars
4 Stars
3 Stars
2 Stars
1 Stars

Average Star Rating: 0.0 out of 5 (0 vote)

If you finish the payment today, your order will arrive within the estimated delivery time.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tambah ke keranjang

Inverter Solis Mini 1000 4G

Rp9,079,538

Seri MiNi- Diperluas hingga 3600W Teknologi switching frekuensi tinggi-Smallersmarter DRM terintegrasi sepenuhnya sesuai dengan AS47772: 2015 Ringkas dan ringan Rentang…

Tambah ke keranjang

Solar Charging Station

Rp15,000,000

*)Barang Akan dikirimkan 21-40 hari kerja

Tambah ke keranjang

Tubelight 400

Rp350,000

Lampu Fosera Tube Light merupakan lampu tenaga surya yang menggunakan teknologi LED berefisiensi tinggi hingga 145 lm/W menjadikan penerangan rumah…

Pilih opsi Produk ini memiliki beberapa varian. Pilihan ini dapat diambil di halaman produk

Charger Mobil Listrik

Rp15,376,608 – Rp1,361,470,500

Solusi pengisian daya untuk kendaraan listrik, mulai dari pengisian daya rumah tangga hingga stasiun pengisian daya publik. Beragam model dan…

Charger Mobil Listrik

SKU: N/A Kategori: EV Charger Tag: Charger Mobil Listrik, EV Charger, Kendaraan Listrik

Solusi pengisian daya untuk kendaraan listrik, mulai dari pengisian daya rumah tangga hingga stasiun pengisian daya publik.

Beragam model dan fitur canggih dirancang untuk memastikan proses pengisian daya yang efisien, aman, dan terpercaya.

Rp15,376,608 – Rp1,361,470,500

Type

AC MINI PLUS 7KW
AC MAX 22KW
DC WALLBOX 25KW
DC WALLBOX 50KW
DC-AC (DC 25KW + AC 22KW)
DC CITY 100KW
DC CITY 200KW

Hapus

Compare

Tambah ke keranjang

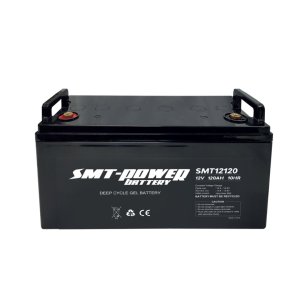

SAMOTO – Battery VRLA 12V 120AH
